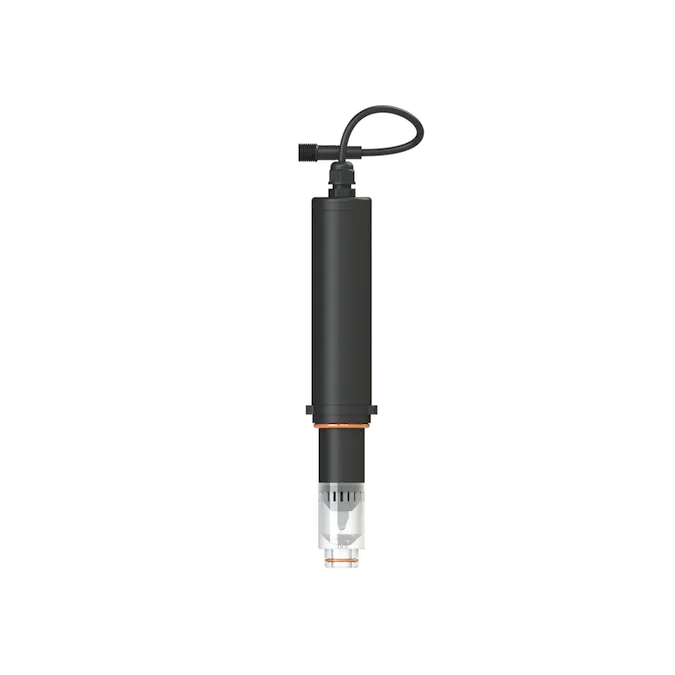

Self-Cleaning Membraneless Digital Disinfectant Sensor
YG-CL20/DS
The self‑cleaning, membraneless digital disinfectant sensor is a proprietary three‑electrode amperometric sensor operating at constant potential, developed by our company, for measuring disinfectant concentrations such as free chlorine, chlorine dioxide (high‑purity), and ozone. The electrode integrates an ARM processor and an efficient filtering algorithm to effectively suppress noise, and features an RS‑485 interface for easy connection to computers and network monitoring systems.
Industry Applications
- Water Treatment Plant
- Secondary Water Supply
- Swimming Pool
- Water Transmission Network
Product Features
Electrochemical Sensor
No Reagent Consumption or Pollutant Emissions
Membraneless Design
No membrane cap replacement or electrolyte refilling required
Three-Electrode Design
Stable Zero and High Sensitivity
Built-in High Precision
Sampling circuit ensures good sensor linearity
Measurement Method Comparison
Accurately correlates with the DPD method when pH variation is small
Self-Cleaning Design
Stabilizes electrode operation and extends maintenance intervals
Technical Specifications
| System Parameters | Details |
|---|---|
| Measurement Parameters | Free chlorine, chlorine dioxide (high‑purity), ozone, temperature |
| Operating voltage: | DC 9–28 V |
| Peak Power | 0.5 W |
| Communication Interface | RS‑485, 4–20 mA |
| Electrode Material | Platinum, stainless steel, silver chloride |
| Sample Flow Rate | >700 mL/min, and the flow rate must be kept stable |
| Operating Temperature: | -5 to 45 °C |
| Operating Pressure | <0.1 MPa |
| Disinfectants (Free Chlorine/Chlorine Dioxide/Ozone) | Details |
| Measurement Method | Reagent‑free, electrochemical, three‑electrode amperometric system |
| Measurement Range | 0–5/20 mg/L |
| Resolution | 0.001 mg/L |
| Limit of Detection | 0.030 mg/L or lower |
| Accuracy | ±3% (DPD method correlation error: ±10% or 0.05 mg/L, whichever is greater) |
| Repeatability | ±3% |
| Response Time (T90) | ≤ 90 s |
| Calibration Method | Single‑point calibration, two‑point calibration |
| Sample pH Range | 4–9 |
| Temperature | Details |
| Measurement Method | Thermistor‑based measurement |
| Measurement Range | –5 to 60 °C |
| Resolution | 0.1 °C |
| Accuracy | ±0.4 °C |
| Repeatability | 0.2 °C |
| Response Time (T90) | ≤ 25 s |
| Calibration Method | Single‑point calibration |
| (Note: Specifications are subject to change due to product improvements; YuanGan reserves the right to modify parameters.) | |
